Glory Info About How To Convert 230V AC 5V DC

Understanding the Need

1. The World of Electronics and Low Voltage

Ever wondered why almost all your small electronic gadgets, from your trusty phone charger to that quirky desk lamp, need a power adapter? It all boils down to voltage! Your wall socket spits out 230V AC (Alternating Current), a hefty amount of electricity designed for powering things like refrigerators and washing machines. But delicate electronics? They prefer a gentle sip of 5V DC (Direct Current). Think of it like this: 230V AC is a firehose, and 5V DC is a refreshing glass of water. Trying to power your phone directly from the wall would be catastrophic. That's where the magic of conversion comes in.

So, the main point, focusing on "How to convert 230V AC to 5V DC," involves understanding that most consumer electronics operate on low-voltage DC power, while the mains supply is high-voltage AC. This means a conversion process is essential for safe and efficient operation. We'll dissect this process step-by-step.

The phrase "convert 230V AC to 5V DC" itself breaks down into a few key elements. "Convert" is a verb, indicating the action of changing something. "230V AC" and "5V DC" are both noun phrases, specifying the initial and final states of the electricity. In this context, the verb "convert" is the primary action and hence, the main point for this article.

Essentially, the goal here is to safely reduce the high-voltage AC power to a low-voltage DC suitable for sensitive components. It's about protecting your gadgets from frying themselves. Think of it as a translator, taking the language of the power grid and making it understandable for your electronic devices. It's a vital process in almost every aspect of modern technology.

Exploring the Methods

2. Transformer, Rectifier, Filter, and Regulator

There are several ways to convert 230V AC to 5V DC, each with its own pros and cons. The most common method involves a combination of components working together like a well-oiled (and spark-free) machine. First, a transformer steps down the voltage from 230V AC to a lower AC voltage, say 9V AC. This is like turning down the water pressure before trying to fill a delicate glass.

Next, a rectifier converts the AC voltage into DC voltage. Think of it as a one-way valve, allowing electricity to flow in only one direction. This pulsating DC then goes through a filter, which smooths out the ripples in the voltage, making it cleaner and more stable. Finally, a voltage regulator ensures the output voltage remains constant at 5V DC, regardless of fluctuations in the input voltage or the load connected to it. This is crucial for ensuring your devices get a consistent and safe power supply.

These components might sound intimidating, but they're the building blocks of almost every power adapter you use. Some methods might prioritize efficiency, while others might focus on size and cost. Selecting the right method depends heavily on the specific application.

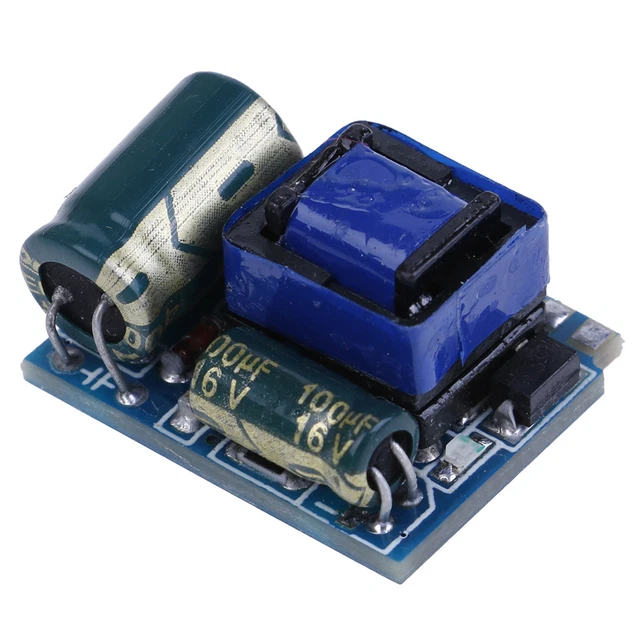

Beyond the traditional transformer-based method, there are also switched-mode power supplies (SMPS). These are typically smaller, lighter, and more efficient, using high-frequency switching to achieve the voltage conversion. You'll find SMPS in many modern devices, like laptops and phone chargers. They are more complex in design but offer significant advantages in terms of size and efficiency.

Deep Dive

3. Understanding the Role of Each Part

Let's get a little closer to the individual heroes in this power conversion saga. The transformer, for instance, works on the principle of electromagnetic induction. It has two coils of wire, and the ratio of the number of turns in each coil determines the voltage transformation ratio. A rectifier typically uses diodes to allow current flow in only one direction, converting AC to pulsating DC.

The filter, often comprising capacitors and inductors, smooths out the pulsating DC voltage. Capacitors store energy and release it when the voltage dips, while inductors resist changes in current flow, thus smoothing the current. The voltage regulator, such as a linear regulator or a switching regulator, maintains a constant output voltage despite variations in input voltage or load current. Linear regulators are simpler but less efficient, while switching regulators are more complex but offer higher efficiency.

Choosing the right components for your conversion project is crucial. The transformer needs to be rated for the correct input voltage and output voltage. The rectifier diodes must be able to handle the current and voltage requirements. The filter capacitors need to have sufficient capacitance to smooth out the voltage ripples. And the voltage regulator needs to be able to provide a stable 5V DC output under varying load conditions.

Each of these components contributes significantly to the overall performance and reliability of the power conversion process. Understanding their individual roles will help you design and troubleshoot power supplies more effectively. It's like knowing the ingredients in a recipe — you'll have a much better understanding of how the final dish will taste.

Practical Applications

4. From Phone Chargers to DIY Projects

The conversion of 230V AC to 5V DC is ubiquitous in modern life. Your phone charger is a prime example, converting the mains voltage to the 5V needed by your phone's battery. USB power adapters, powering everything from desk fans to LED lights, also rely on this conversion. Embedded systems, like microcontrollers and sensors, often require a stable 5V DC supply, necessitating this conversion.

Beyond consumer electronics, this conversion is also crucial in industrial applications. Powering control circuits, communication systems, and various sensors in factories and automation systems often involves stepping down and converting the mains voltage to a suitable DC level. Even in renewable energy systems, like solar power setups, inverters convert the DC voltage from solar panels to AC voltage for grid connection, but often internal circuits need 5V DC for control and monitoring purposes.

For DIY enthusiasts, converting 230V AC to 5V DC opens up a world of possibilities. You can power your Arduino projects, build custom LED lighting systems, or create your own charging solutions for your gadgets. With the right knowledge and components, you can safely and efficiently power your creations.

However, it's crucial to remember that working with mains electricity can be dangerous. Always take necessary precautions, such as using insulated tools, wearing safety glasses, and disconnecting the power supply before working on any electrical circuit. If you're not comfortable working with electricity, it's best to seek the help of a qualified electrician.

Safety First

5. Treat Electricity with Respect

Dealing with mains electricity is no joke. It can be dangerous and even deadly if not handled correctly. So, before you even think about plugging anything in, make sure you understand the risks involved. Always disconnect the power supply before working on any electrical circuit. Use insulated tools to prevent electric shocks. Wear safety glasses to protect your eyes from sparks or flying debris.

When building your own power supply, always use high-quality components and follow safety guidelines. Double-check your wiring to ensure everything is connected correctly. Never overload the power supply, as this can cause it to overheat and potentially start a fire. Enclose the power supply in a non-conductive enclosure to prevent accidental contact with live components.

If you're unsure about anything, don't hesitate to ask for help from a qualified electrician. It's better to be safe than sorry. Remember, electricity is a powerful force, and it deserves respect. Take the time to learn about electrical safety and follow best practices to protect yourself and others.

And, perhaps most importantly, remember to double-check your work! A simple mistake in wiring can lead to unexpected — and often unpleasant — consequences. Take your time, be methodical, and don't be afraid to ask for a second opinion. Electricity is something you definitely want to get right the first time.

FAQ

6. Common Queries About Power Conversion

Q: Can I just use any old adapter to convert 230V AC to 5V DC?

A: No! It's crucial to use an adapter that is specifically designed for your device and rated for the correct voltage and current. Using an incorrect adapter can damage your device or even create a fire hazard.

Q: Is it safe to build my own 230V AC to 5V DC converter?

A: Building your own power supply can be a fun and educational project, but it's essential to have a solid understanding of electronics and electrical safety. If you're not comfortable working with mains electricity, it's best to purchase a pre-made power supply.

Q: What are the advantages of using a switched-mode power supply (SMPS) over a traditional transformer-based power supply?

A: SMPS are typically smaller, lighter, and more efficient than traditional transformer-based power supplies. They also tend to have a wider input voltage range, making them suitable for use in different countries with varying mains voltages.
